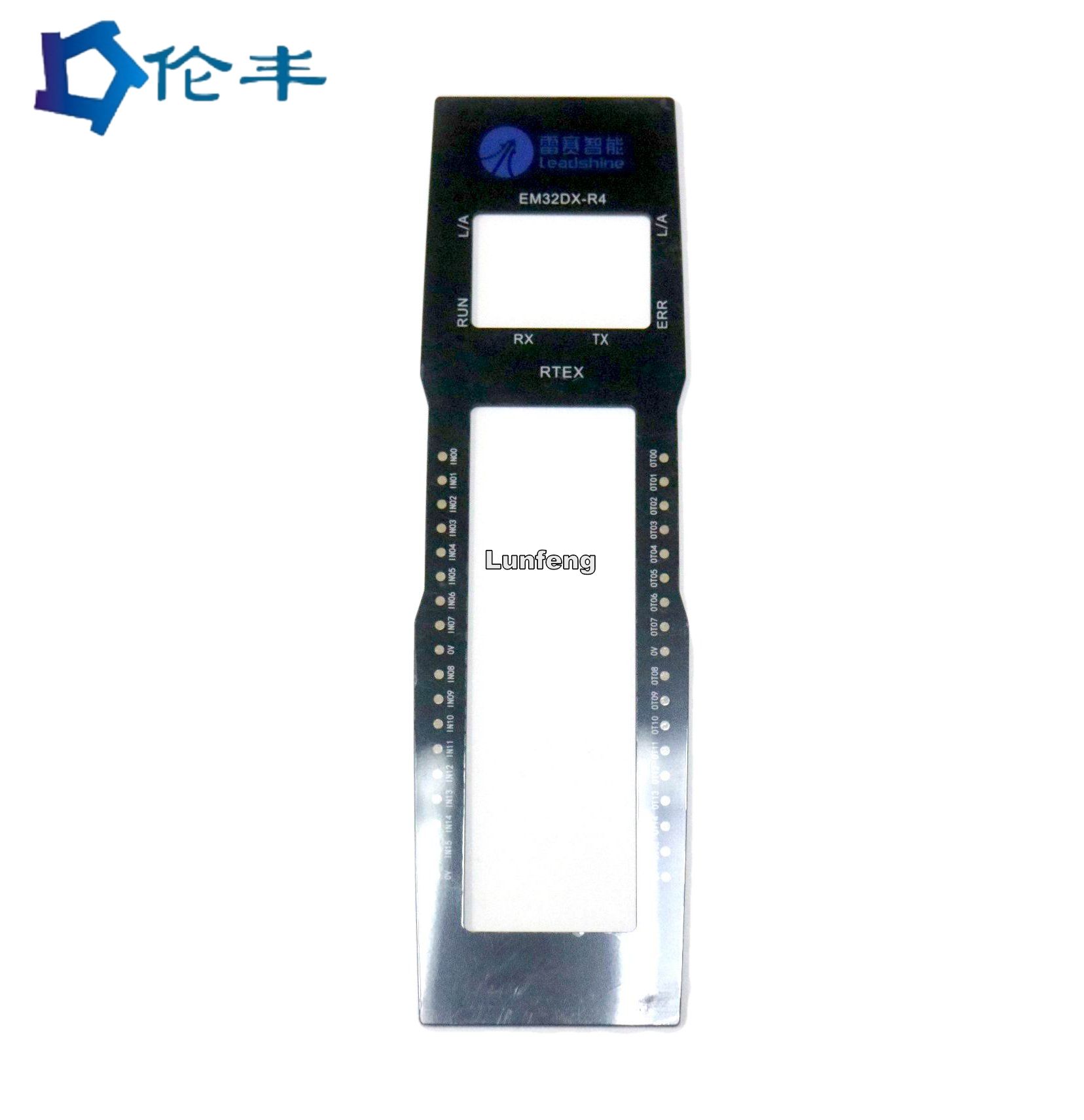

PC PVC Membrane Graphic Front Panel Overlays For Control Device

Name: PC PVC Membrane Graphic Front Panel Overlays For Control Device
Brand: Lunfeng
Price: 1 USD

China PC PVC Membrane Graphic Front Panel Overlays For Control Device wholesale

Brand Name : Lunfeng

Model Number : LFGO916

Certification : ISO9001:2015

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 500000 Piece/Pieces per Month

Delivery Time : 7-25 working days, To be negotiated

Packaging Details : First put into a polybag, then paked into a carton. According to clients' special requirements.

Product : PC PVC Membrane overlay graphic overlay Front Panel Overlays for control device

Name : Front Panel Overlays

Colors : Pantone/ RAL color, black, white, blue

Material surface : glossy texture

Rear adhesive : 3M467 adhesive

Material : PET PC

feature : flat, LED holes

Shape : Customized shape, rectangle

Usage : OEM Electronics

Thickness : 0.2-0.5 mm special requirement accepted

Contact Now

PC PVC Membrane overlay graphic overlay Front Panel Overlays for control device

Polycarbonate Front Panel Overlays
Polycarbonates are known for their dimensional stability, optical clarity, printability and graphic design freedom. Polycarbonate (Lexan, PC) film is a high quality, tough, stable and heat-resistant material ideally suited to a number of graphic and industrial applications. Polycarbonate Front Panel Overlays have superior mechanical strength, toughness and clarity. The polycarbonate Front Panel Overlays can also survive extreme environmental conditions, such as high temperatures, chemical abrasions and corrosion.

High impact strength and resistance to stains, heat, abrasion and corrosive chemicals. Polycarbonate Graphic Overlays are screen or digitally printed on the second surface. Expected exterior life of up to five years.

Polycarbonate Front Panel Overlays (PC Overlays) are commonly used as faceplates, membrane switches or decorative features for control panels, food equipment, instrumentation, consumer appliances, medical devices, automotive, household appliances and electronics. Popular applications for polycarbonate overlays include warning and safety messages, operator or consumer instructions and branding and product identification.
Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system

Items	Silver Printed Circuit	Copper Etched FPC Circuit
Material	PET (Polyester)	Copper
Conductor	Printed silver	Copper
Contact Fingers	Silver and Carbon	Gold plated
Contact Buttons Pads	Silver	Gold plated
Life & Reliability	normal	good
Stability	normal	good
Resistance	low	Very low
Cost	low	high
Lead Time	2-3 days	7-10 days
Pitch	0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm	0.5mm, 1.0mm, 1.27mm, 2.54mm

1.Electrical Properties		Membrane Switch
Electrical Level:		35V(DC), 100mA,1W
Contact Resistance:		10Ω~500 Ω
Insulation Resistance:		100MΩ/100V
Dielectrics Voltage-resistance:		250VRms(50~60Hz 1min)
Chattering Time:		≤ 5ms
Life Time:		Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding:		R>1,180

2.Mechanical Properties
Operating Force:		Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke:		Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm

3.Environmental and Storage Conditions
Operation Temperature:		-40°C ~ +80°C
Storage Temperature:		-40°C ~ +80°C
Humidity:		40°C, 90%~95%, 240 hours

FAQ:

Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
